How To Catch Failed MAP Sensor Mercedes GL

Thanks! Share it with your friends!

You disliked this video. Thanks for the feedback!

Added by vindheim
41 Views

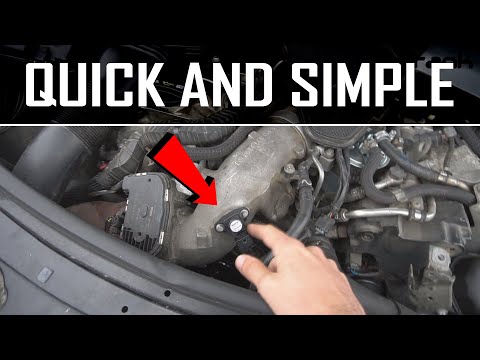

In this video, we going to show, how to diagnose a failed/bad/faulty MAP sensor (Charge Air Pressure Sensor) on Mercedes. Some times it is called Boost Pressure Sensor...

Fault/error codes (using Star Diagnosis Xentry):

DTC 0105-002 Check component B5/1 ( Charge Pressure Sensor). The signal voltage is too low.
DTC 0105-08 Check Component B5/1 ( Charge Pressure Sensor). The atmospheric pressure between component B5/1 (Charge pressure sensor) and component N3/9 (CDI control unit) is implausible.
DTC 0105-01 Check component B5/1 (Charge pressure sensor). The signal voltage is too high.
DTC 0105-04 Check component B5/1 (Charge pressure sensor). CAN signal faulty

Car spec:
Mercedes GL X164 420 CDI
